STIHL BT 131 Earth Auger-with Drill bit
BT 131 Earth Auger-with Drill bit
| Parameter | Specification |
|---|---|
| Engine displacement | 36.3 cc |
| Engine power | 1.4 kW (1.9 bhp) |
| Torque (auger) | 81 Nm (60 ft·lb) |
| Torque (engine) | 1.7 Nm (1.25 ft·lb) |
| Drilling gear speed | 200 rpm |
| Gear reduction ratio | 47.5 : 1 |
| Fuel tank capacity | 0.71 L (24 oz) |
| Weight (powerhead only) | 10 kg (22 lb) |
| Fuel system | STIHL MotoMix (2‑stroke mixed lubrication) |
| Drive | Spur gear, grease‑lubricated |
| Rotation direction | Clockwise |

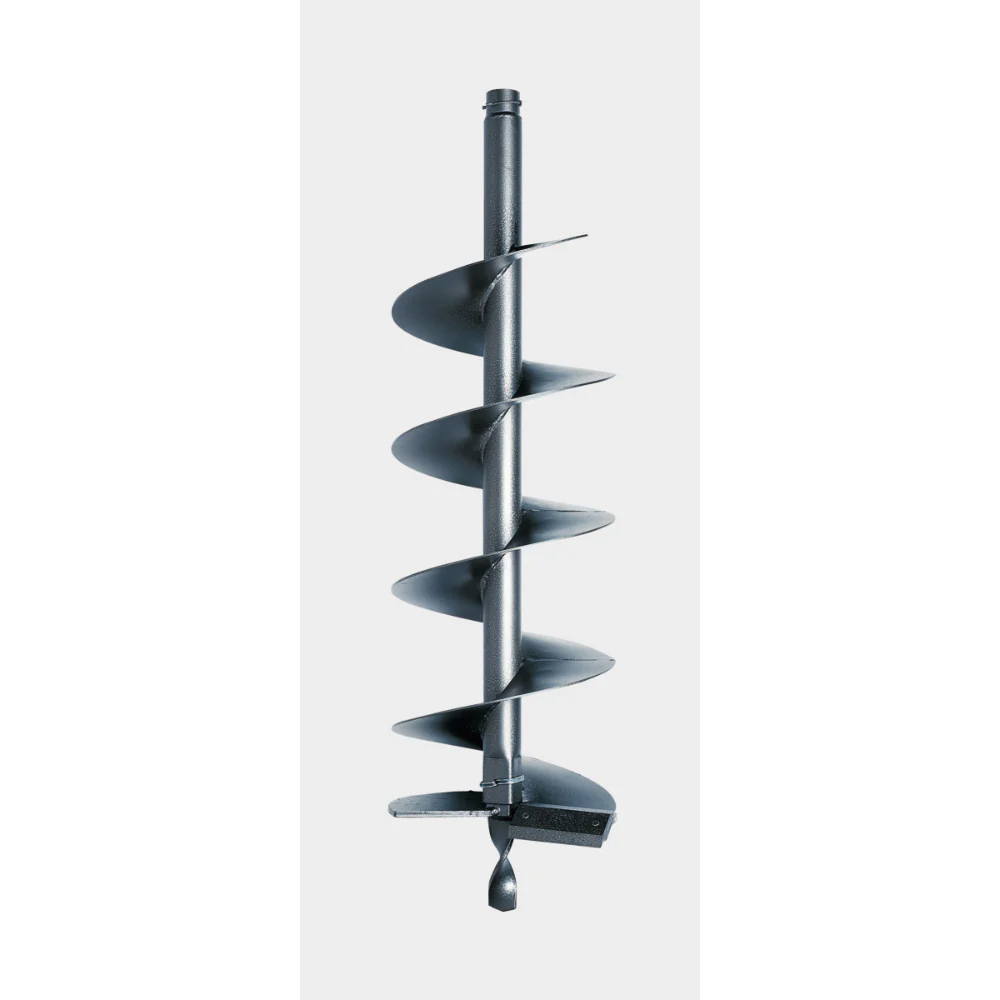

| Auger bit diameter | 60 / 80 / 100 / 150 / 200 mm |
| Standard digging depth | 762 mm |
| Extension option | Optional 500 mm extension |
LARGE-AREA SUPPORT CUSHION
FOR GOOD CONTROL. With the large-area support cushion, you can guide your earth auger smoothly and precisely. The cushion fits comfortably against your body during drilling, providing optimal hold and good guidance.
4-MIX® engine
The 1.4 kW STIHL 4-MIX® engine combines the advantages of a two-stroke and a four-stroke engine - it is economical, smooth, responsive and powerful. It produces less emissions and doesn't need an oil service.
Long-life air filter system
Together with the compensator that is integrated into the carburettor, the long-life air filter system offers long cleaning intervals and reliable engine protection.
QUICKSTOP DRILL BRAKE
FOR SAFE WORK. The QuickStop drill brake stops the drill if your earth auger gets stuck in the ground and causes the trigger lever to hit your thigh. The braking device ensures that the engine no longer transmits its force to the drill element, while the engine and drill element remain coupled. This means that you can simply unscrew the jammed drill in an anti-clockwise direction.
Vibration dampening frame
The vibration-dampening frame with four vibration elements provides comfortable working and reduces fatigue when drilling. The engine is positioned separately from the handle frame, allowing easier working over longer periods.

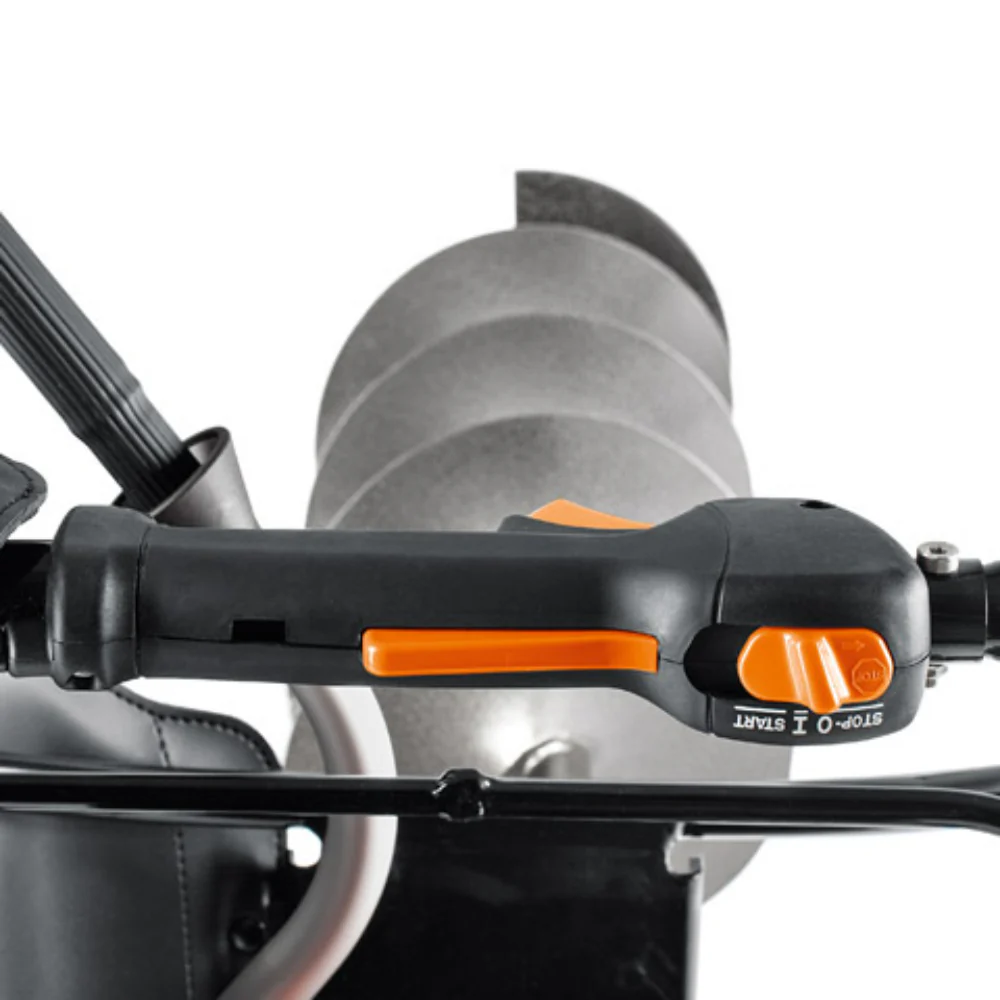

Multi-function handle
All operating elements for the engine control are integrated into the right-hand handle, enabling the drill to be operated by finger pressure. The hand always remains in a working position. BT 131 Earth Auger
