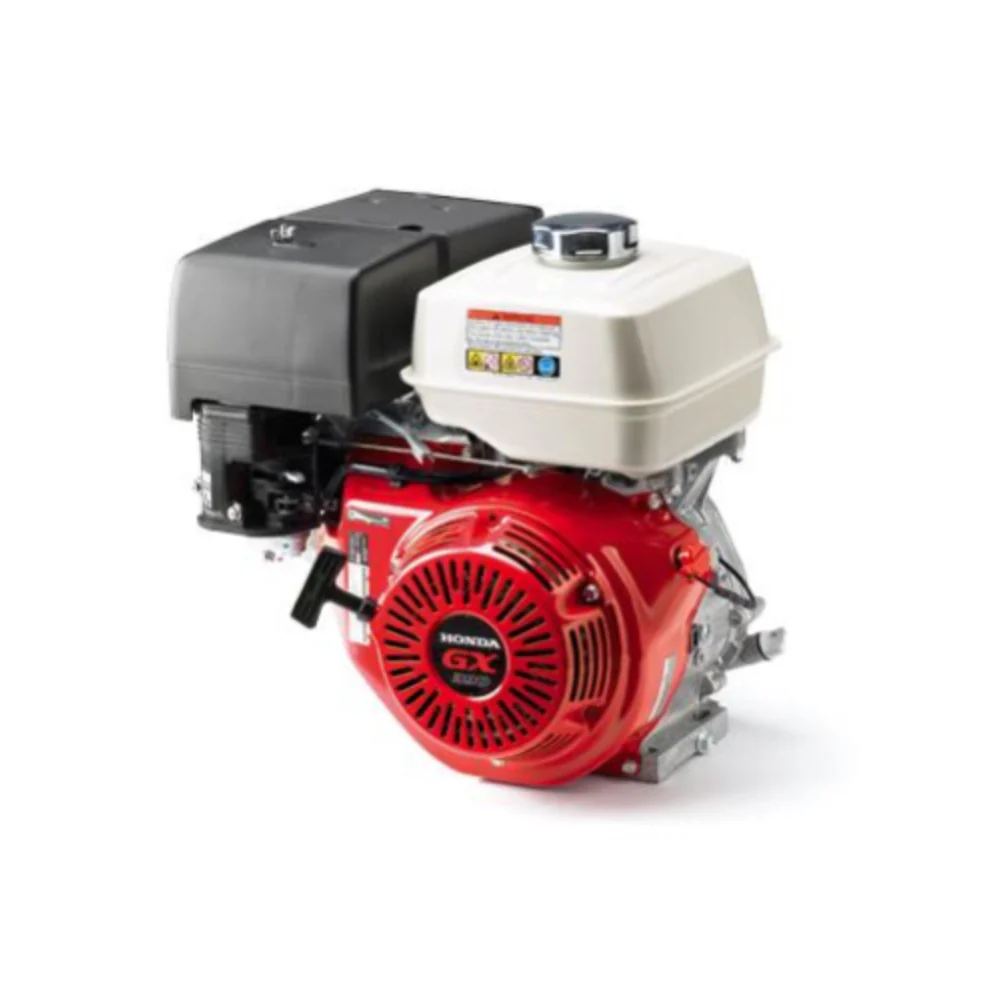

Honda Big Series Engine GX390
Honda Big Series Engine GX390
| Specification | Details |
|---|---|
| Engine Model | Honda GX390 |
| Engine Type | 4-Stroke, OHV, Single Cylinder, Horizontal Shaft |
| Displacement | 389 cc |
| Bore x Stroke | 88 mm x 64 mm |

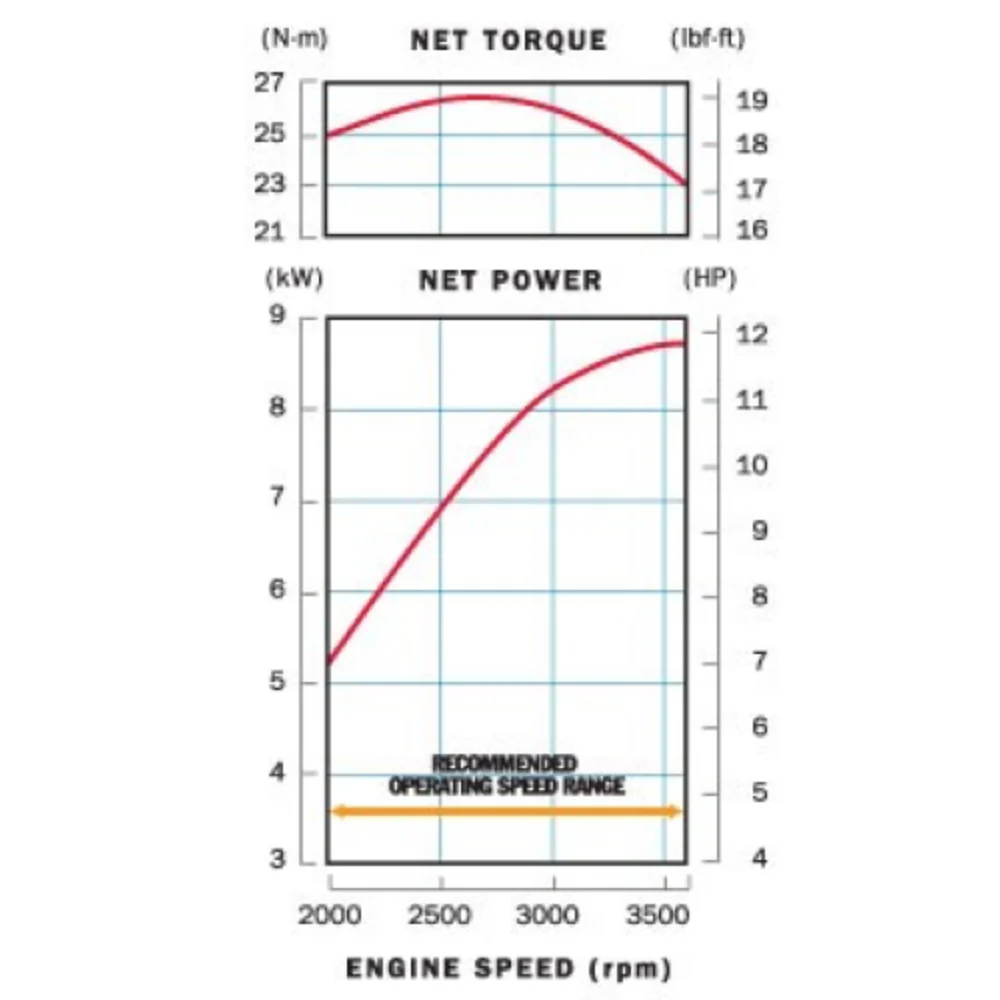

| Maximum Output | 13 HP (9.6 kW) @ 3600 RPM |
| Maximum Net Torque | 26.5 Nm @ 2500 RPM |
| Cooling System | Forced Air Cooling |
| Starting System | Recoil or Electric Start (Optional) |
| Fuel Type | Unleaded Petrol |
| Oil Capacity | 1.1 Litres |
| Fuel Tank Capacity | Optional / External |
| Shaft Type | Horizontal Keyed Shaft |
| Air Filter | Dual Element |
| Lubrication System | Splash |

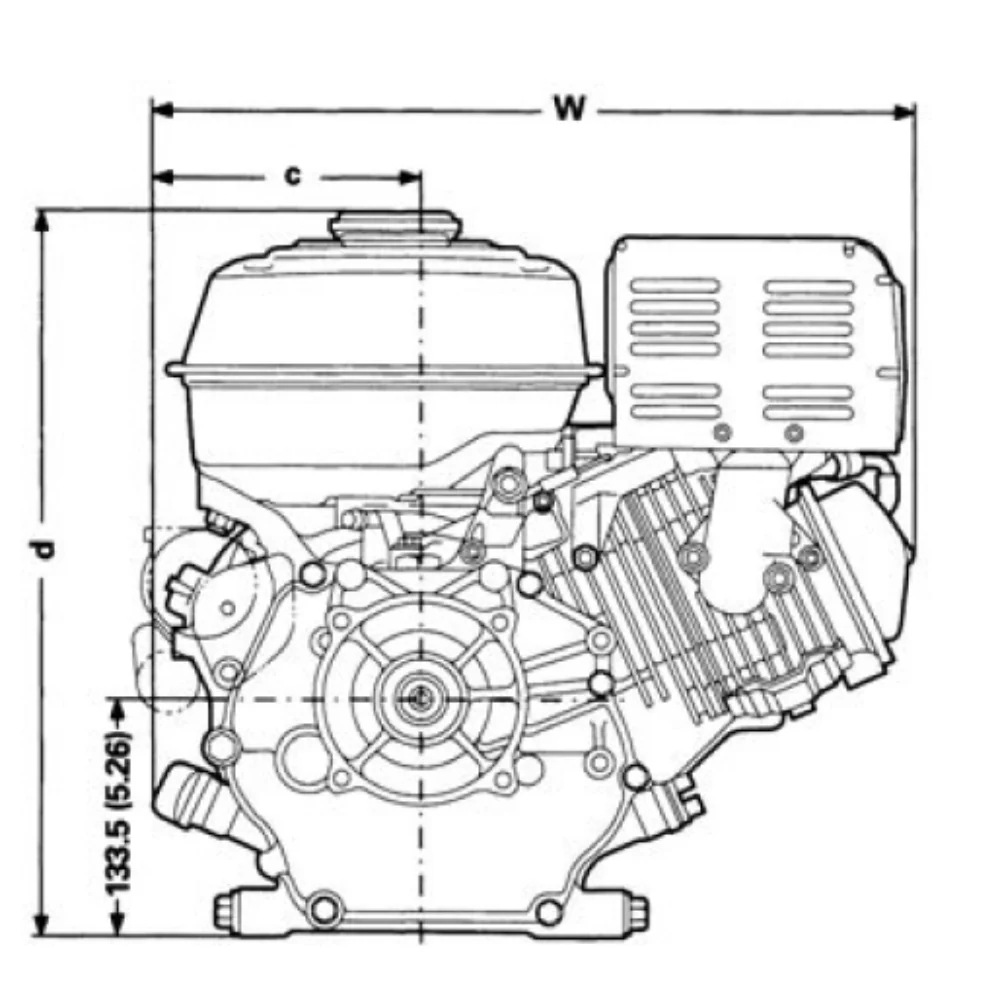

| Dimensions (L x W x H) | 430 x 450 x 440 mm |
| Dry Weight | Approx. 31 kg |
| Recommended Applications | High-power agri machines, Chippers, Generators, Pumps |
$454.43
Honda Big Series Engine GX390—
$454.43
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Honda Big Series Engine GX390
| Specification | Details |
|---|---|
| Engine Model | Honda GX390 |
| Engine Type | 4-Stroke, OHV, Single Cylinder, Horizontal Shaft |
| Displacement | 389 cc |
| Bore x Stroke | 88 mm x 64 mm |
| Maximum Output | 13 HP (9.6 kW) @ 3600 RPM |
| Maximum Net Torque | 26.5 Nm @ 2500 RPM |
| Cooling System | Forced Air Cooling |
| Starting System | Recoil or Electric Start (Optional) |
| Fuel Type | Unleaded Petrol |
| Oil Capacity | 1.1 Litres |
| Fuel Tank Capacity | Optional / External |
| Shaft Type | Horizontal Keyed Shaft |
| Air Filter | Dual Element |
| Lubrication System | Splash |
| Dimensions (L x W x H) | 430 x 450 x 440 mm |
| Dry Weight | Approx. 31 kg |
| Recommended Applications | High-power agri machines, Chippers, Generators, Pumps |
