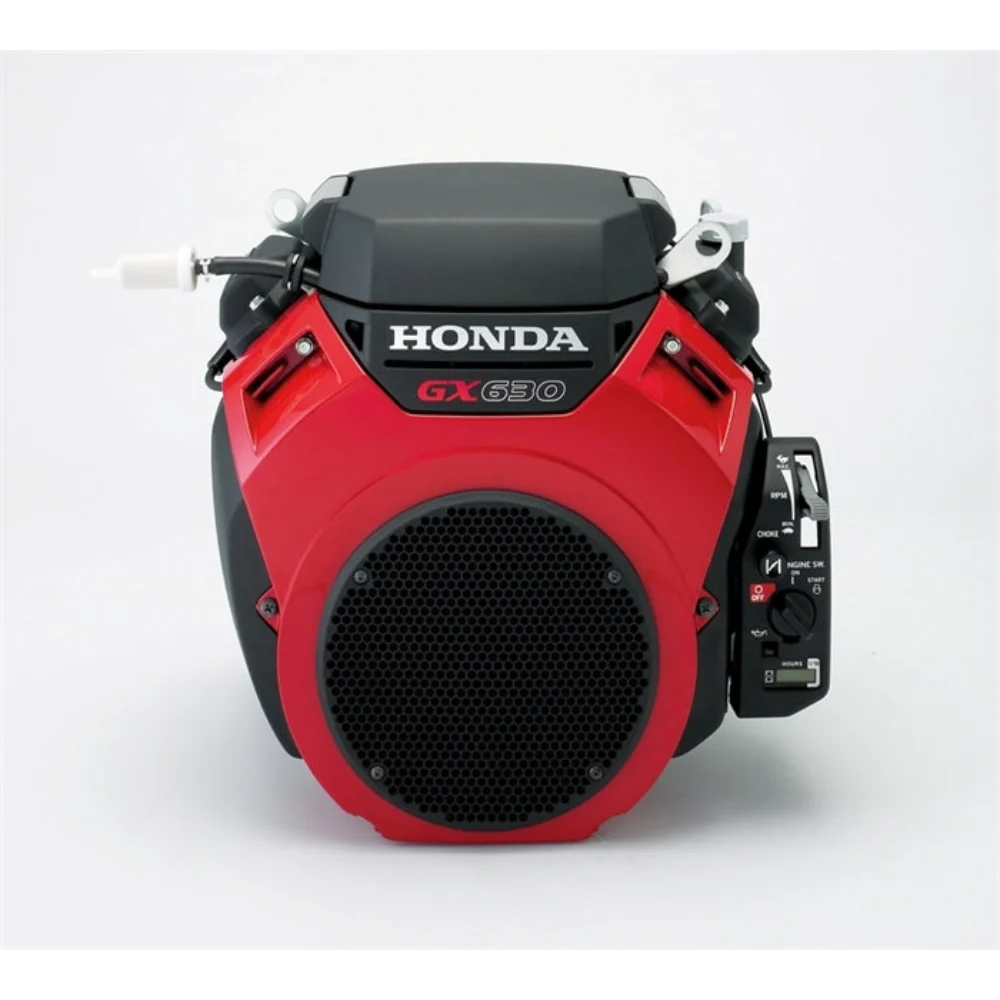

Honda Big Series Engine GX630
Honda Big Series Engine GX630
| Specification | Details |
|---|---|
| Engine Model | Honda GX630 |
| Engine Type | 4-Stroke, OHV, V-Twin, 90° Configuration |
| Displacement | 688 cc |
| Bore x Stroke | 78 mm x 72 mm |

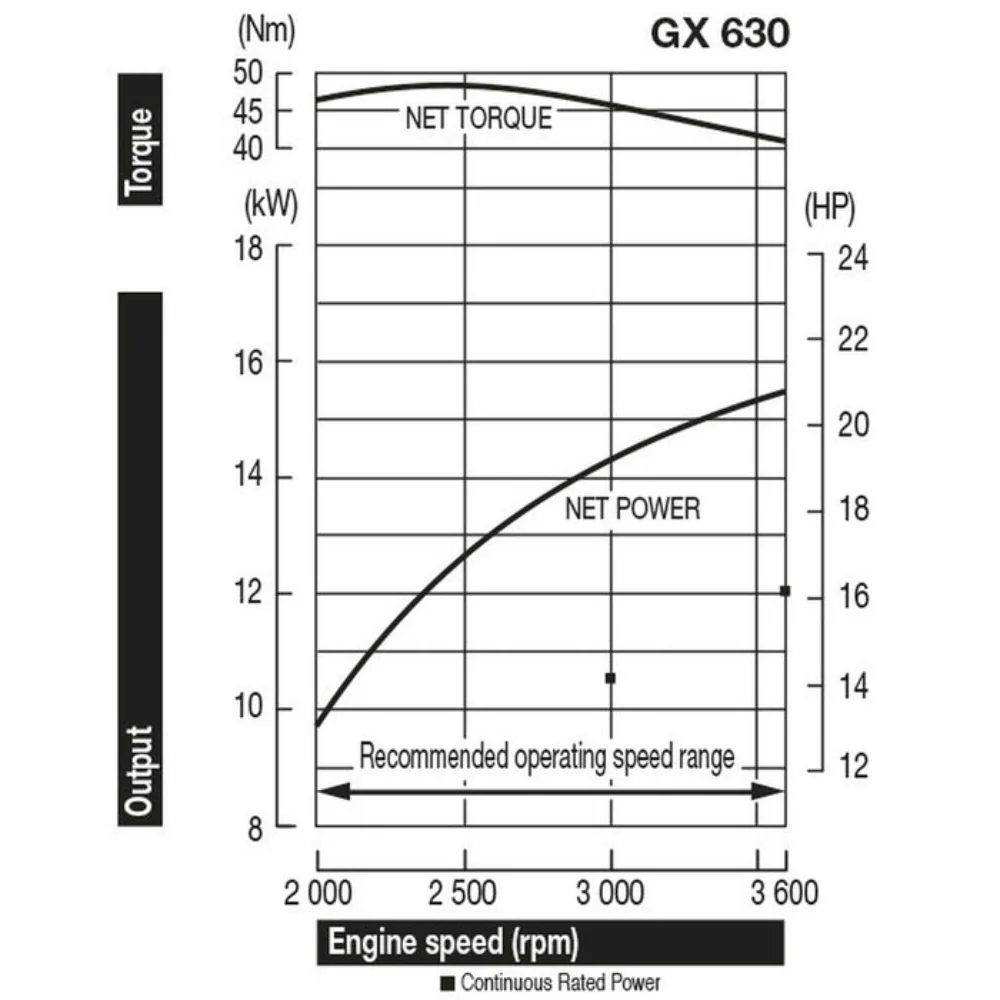

| Maximum Net Power | 20.8 HP (15.5 kW) @ 3600 RPM |
| Maximum Net Torque | 47.7 Nm @ 2500 RPM |
| Cooling System | Forced Air Cooling |
| Starting System | Recoil and Electric Start (Optional) |
| Ignition System | Digital CDI with Variable Timing |
| Fuel Tank Capacity | External Tank (Based on Application) |
| Fuel Type | Unleaded Petrol |
| Oil Capacity | 1.9 Litres |
| Lubrication System | Full Pressure with Oil Filter |
| Air Filter | Dual Element with Cyclone-Type Filter (Optional) |
| Shaft Orientation | Horizontal Shaft |

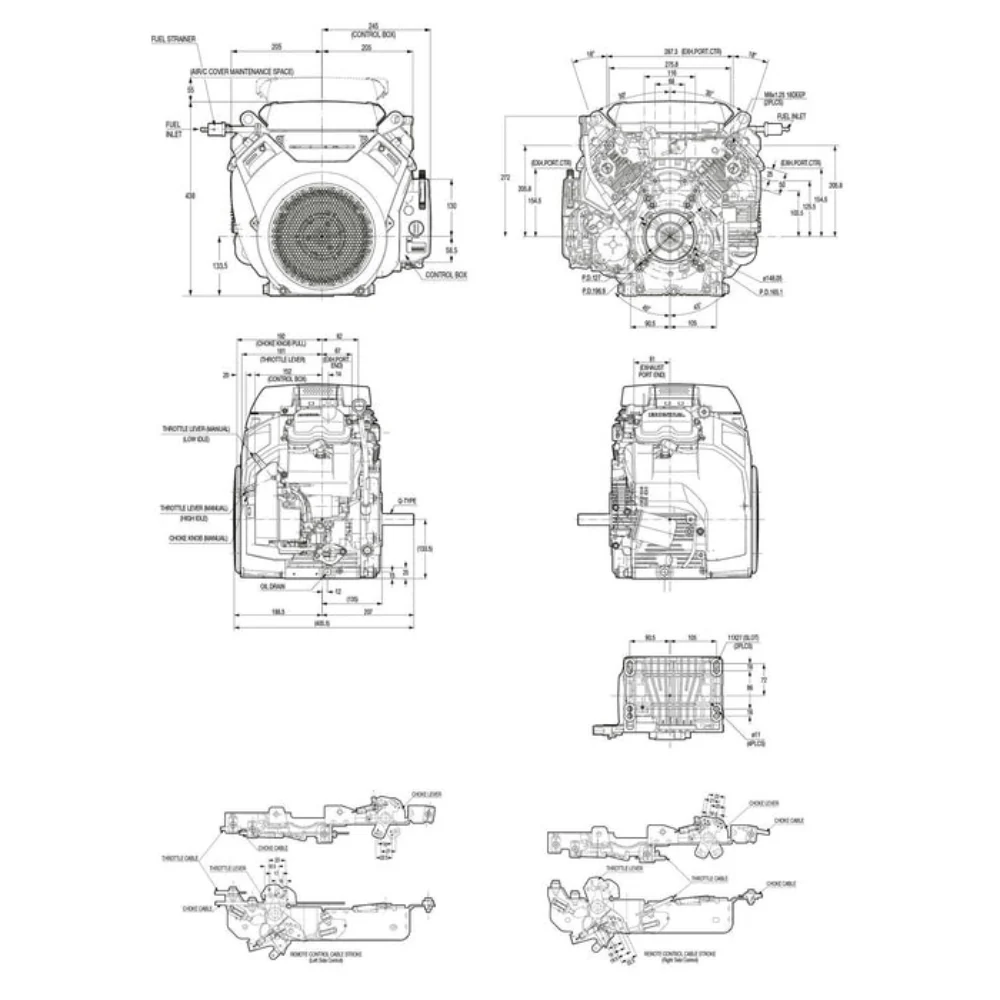

| Dimensions (L x W x H) | 435 x 415 x 470 mm |
| Dry Weight | 43.5 kg (Approx.) |
| Recommended Use | Industrial Equipment, Chippers, Generators, Pumps |
$1,807.40
Honda Big Series Engine GX630—
$1,807.40
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Honda Big Series Engine GX630
| Specification | Details |
|---|---|
| Engine Model | Honda GX630 |
| Engine Type | 4-Stroke, OHV, V-Twin, 90° Configuration |
| Displacement | 688 cc |
| Bore x Stroke | 78 mm x 72 mm |
| Maximum Net Power | 20.8 HP (15.5 kW) @ 3600 RPM |
| Maximum Net Torque | 47.7 Nm @ 2500 RPM |
| Cooling System | Forced Air Cooling |
| Starting System | Recoil and Electric Start (Optional) |
| Ignition System | Digital CDI with Variable Timing |
| Fuel Tank Capacity | External Tank (Based on Application) |
| Fuel Type | Unleaded Petrol |
| Oil Capacity | 1.9 Litres |
| Lubrication System | Full Pressure with Oil Filter |
| Air Filter | Dual Element with Cyclone-Type Filter (Optional) |
| Shaft Orientation | Horizontal Shaft |
| Dimensions (L x W x H) | 435 x 415 x 470 mm |
| Dry Weight | 43.5 kg (Approx.) |
| Recommended Use | Industrial Equipment, Chippers, Generators, Pumps |
